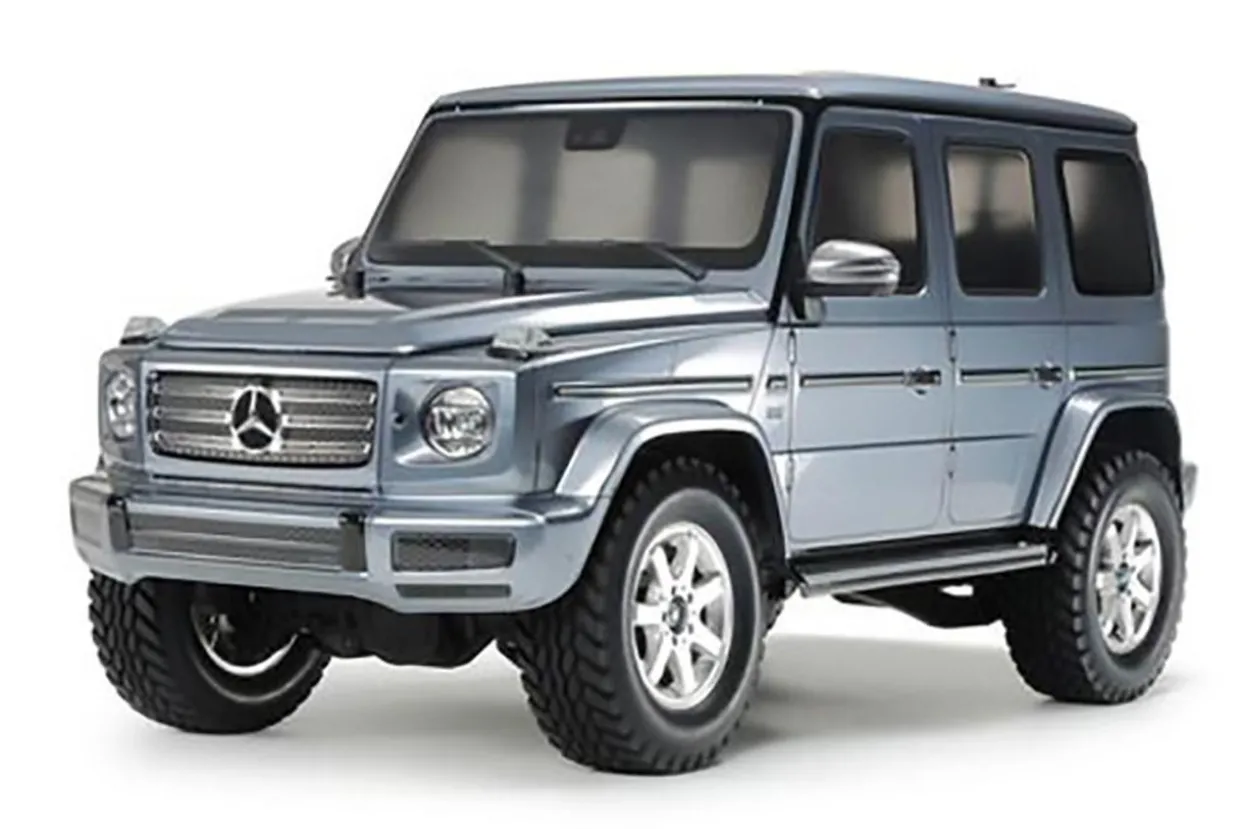

Tamiya RC Mercedes Benz G500 CC-02 Model Kit

The Tamiya RC Mercedes Benz G500 from our great range of radio controlled buggies, on the all-new Tamiya CC-02 (Cross Country 2) chassis platform! Tamiya’s designers have been hard at work to bring R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine.

The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Ford Bronco 2021.
Features & Spec

• 1/10 scale R/C model assembly kit. Length: 455mm, Width: 196mm, Height: 207mm. Wheelbase: 267mm.

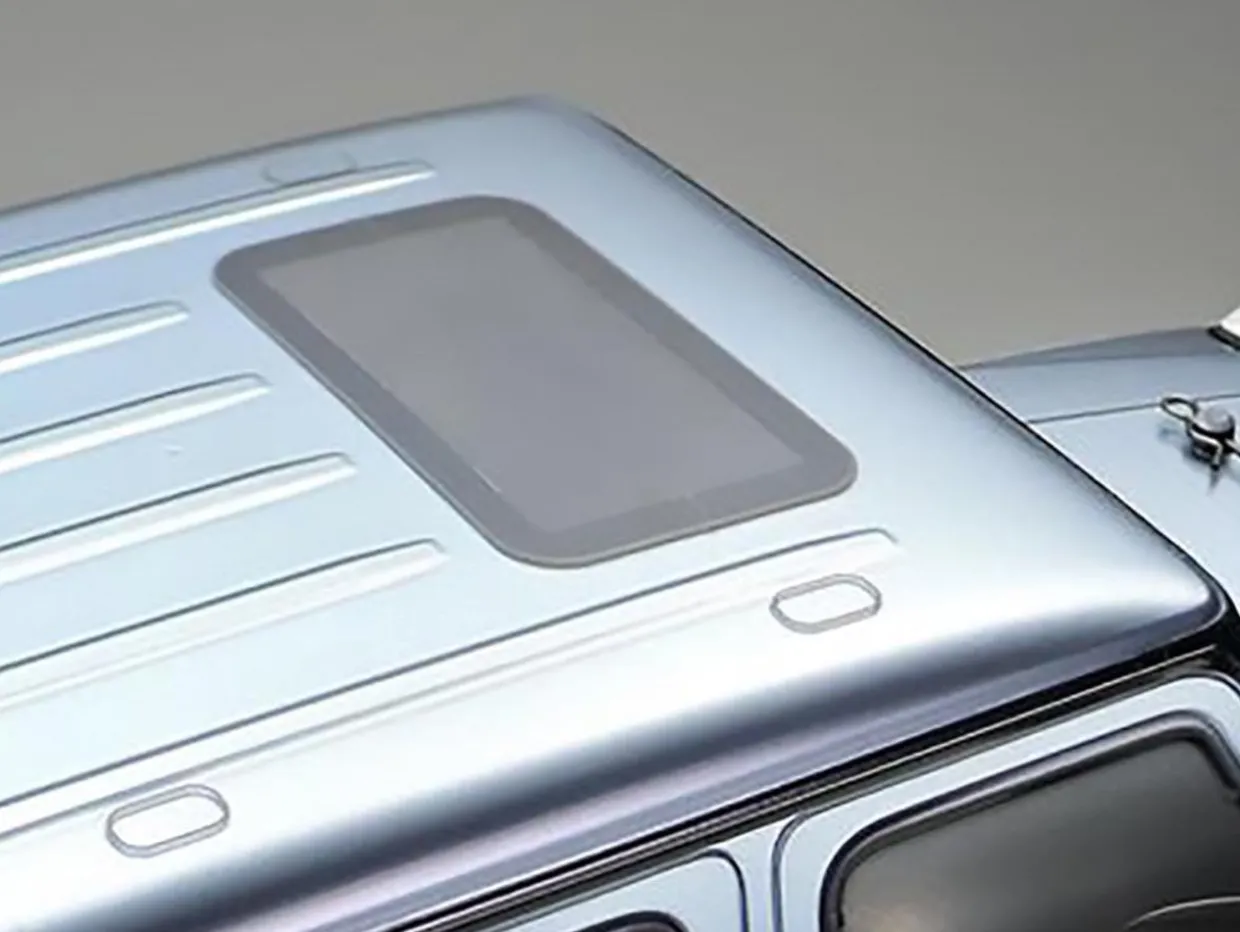

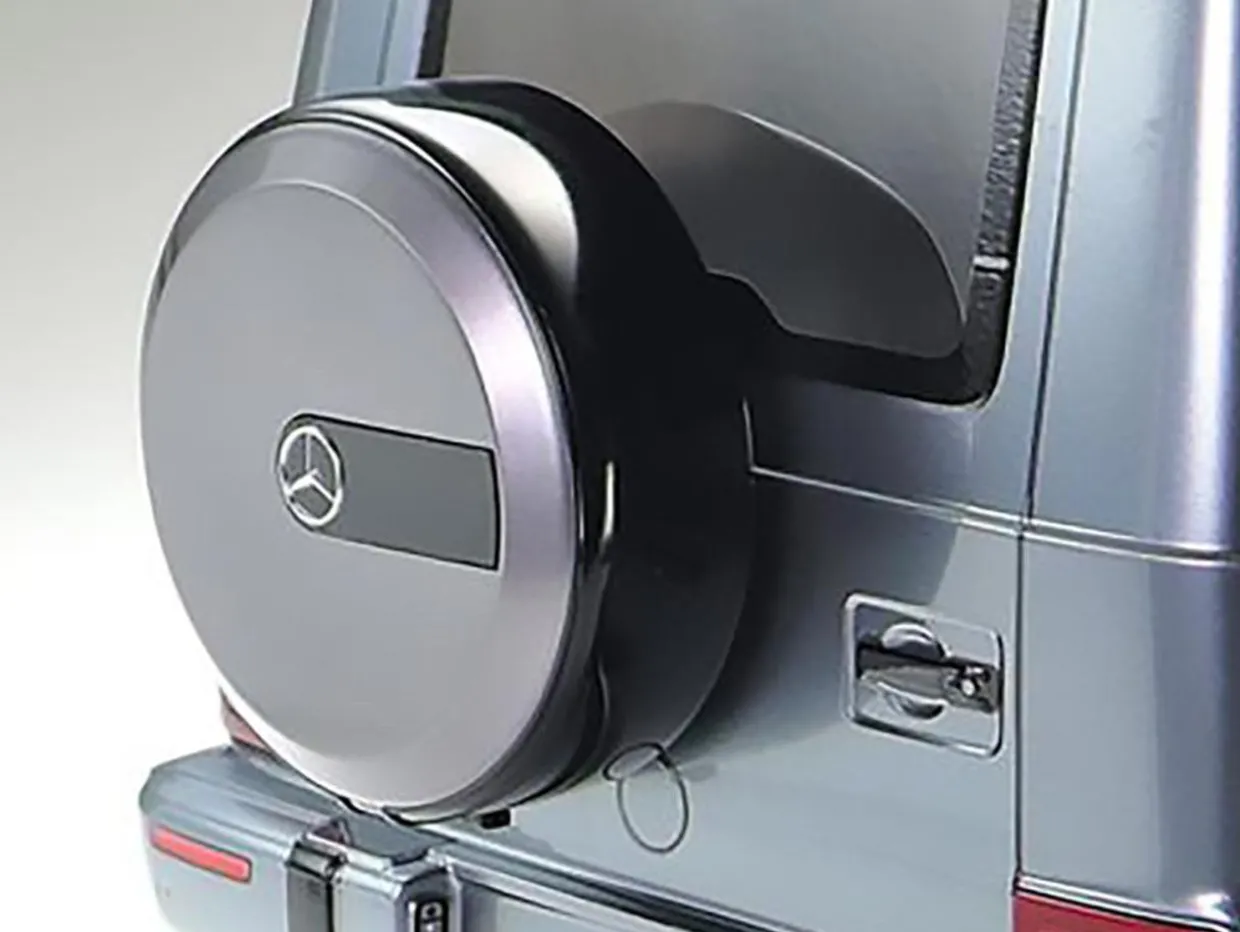

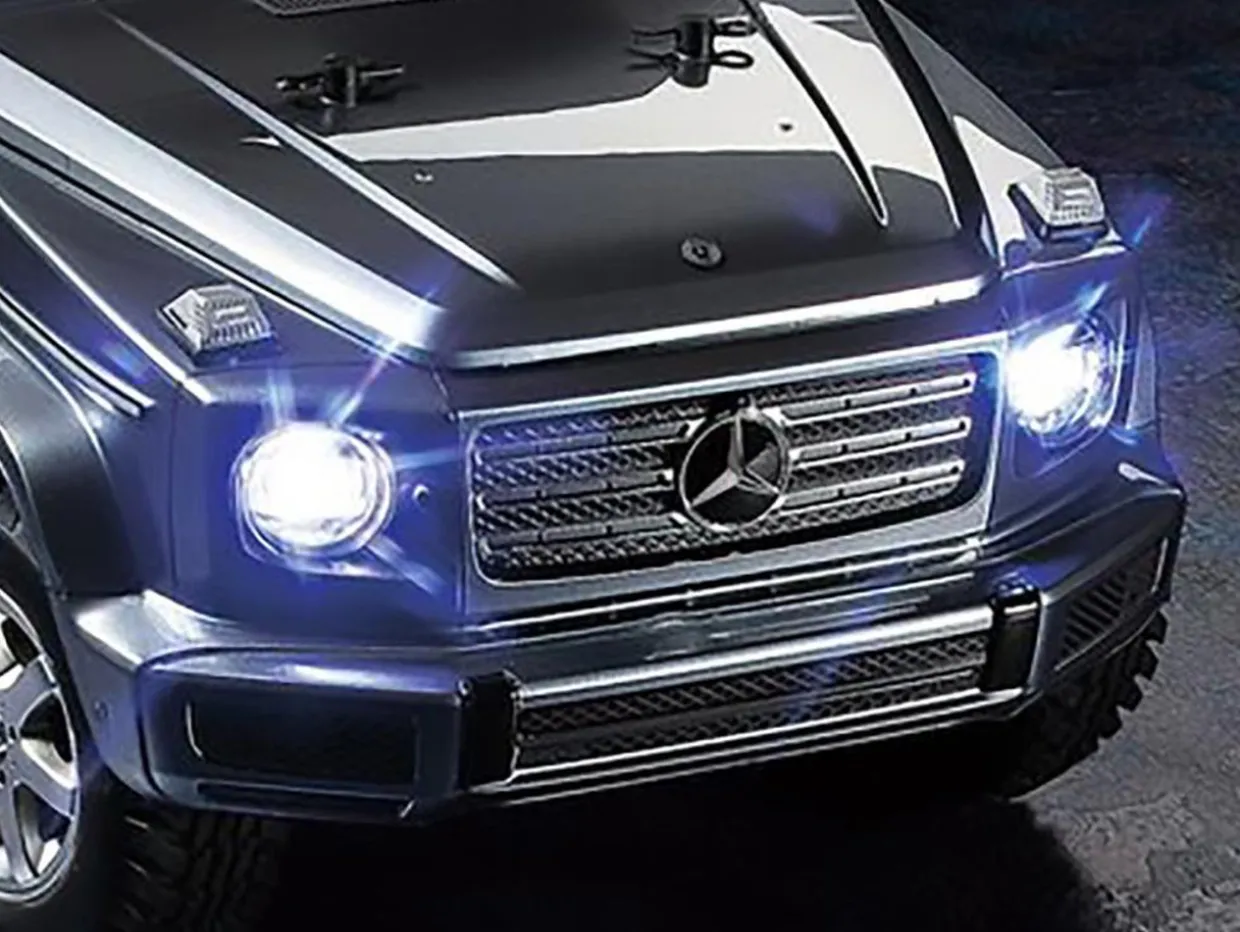

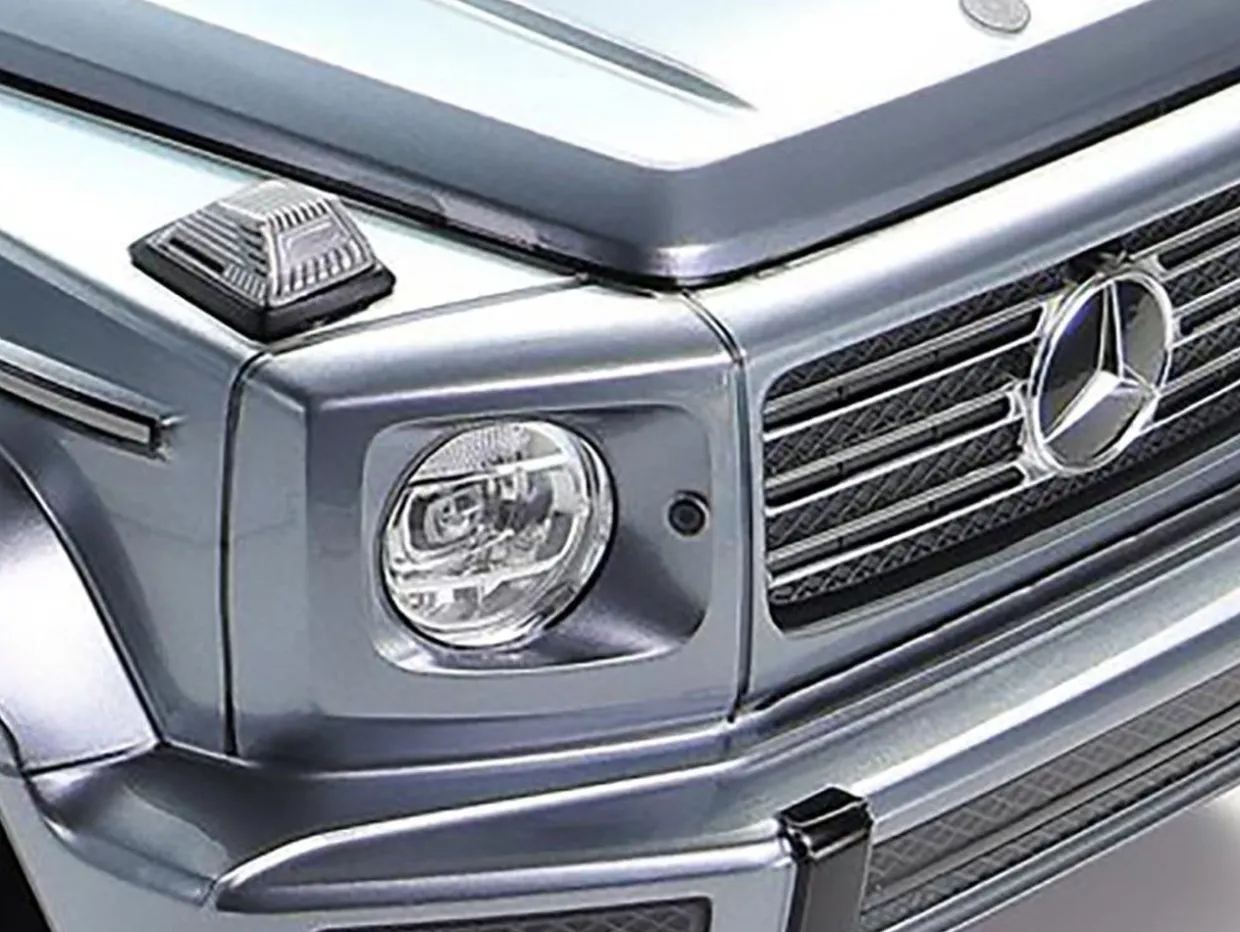

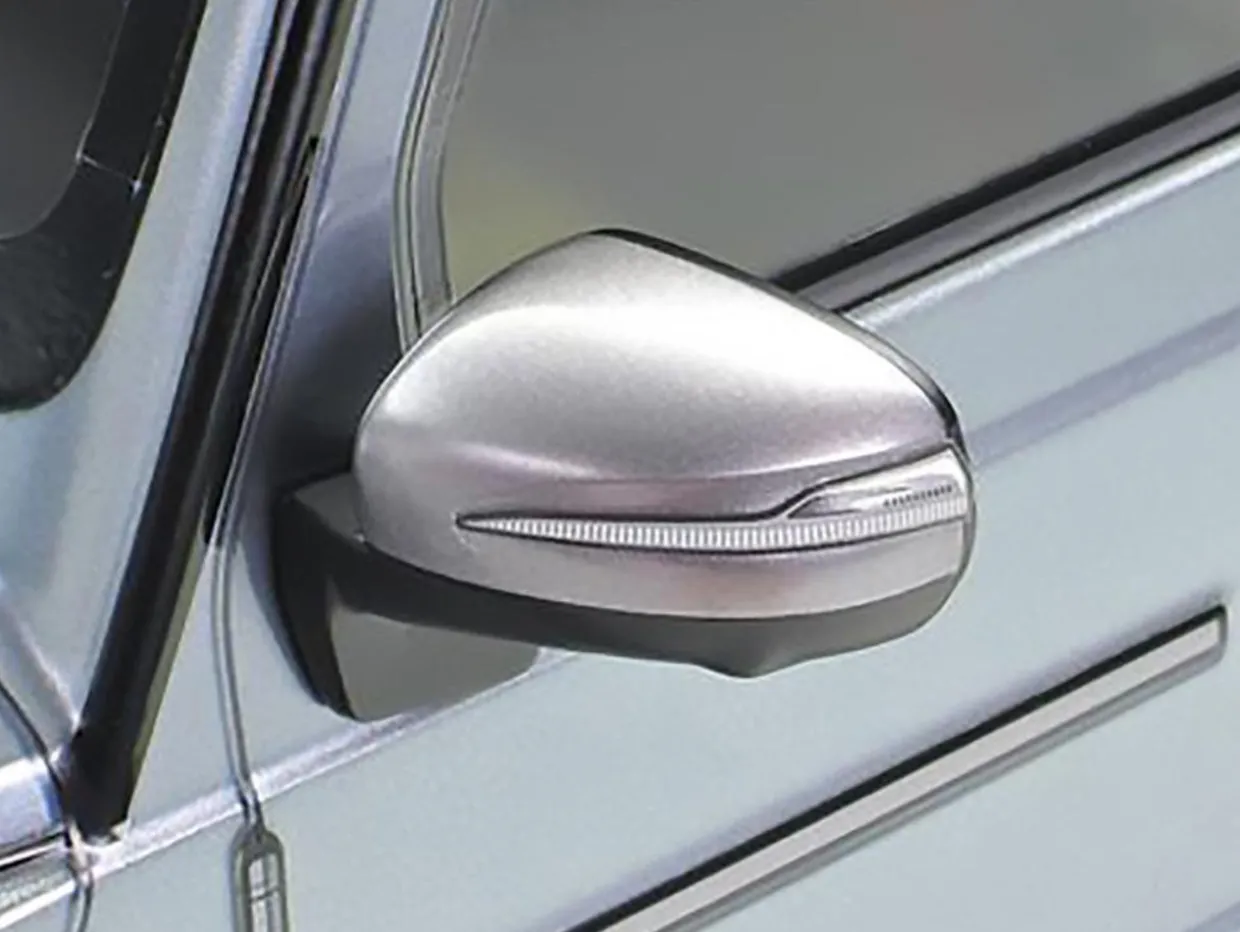

• G 500 body is recreated accurately in polycarbonate. Separately molded parts are included for the front grille, side mirrors and spare tire cover.

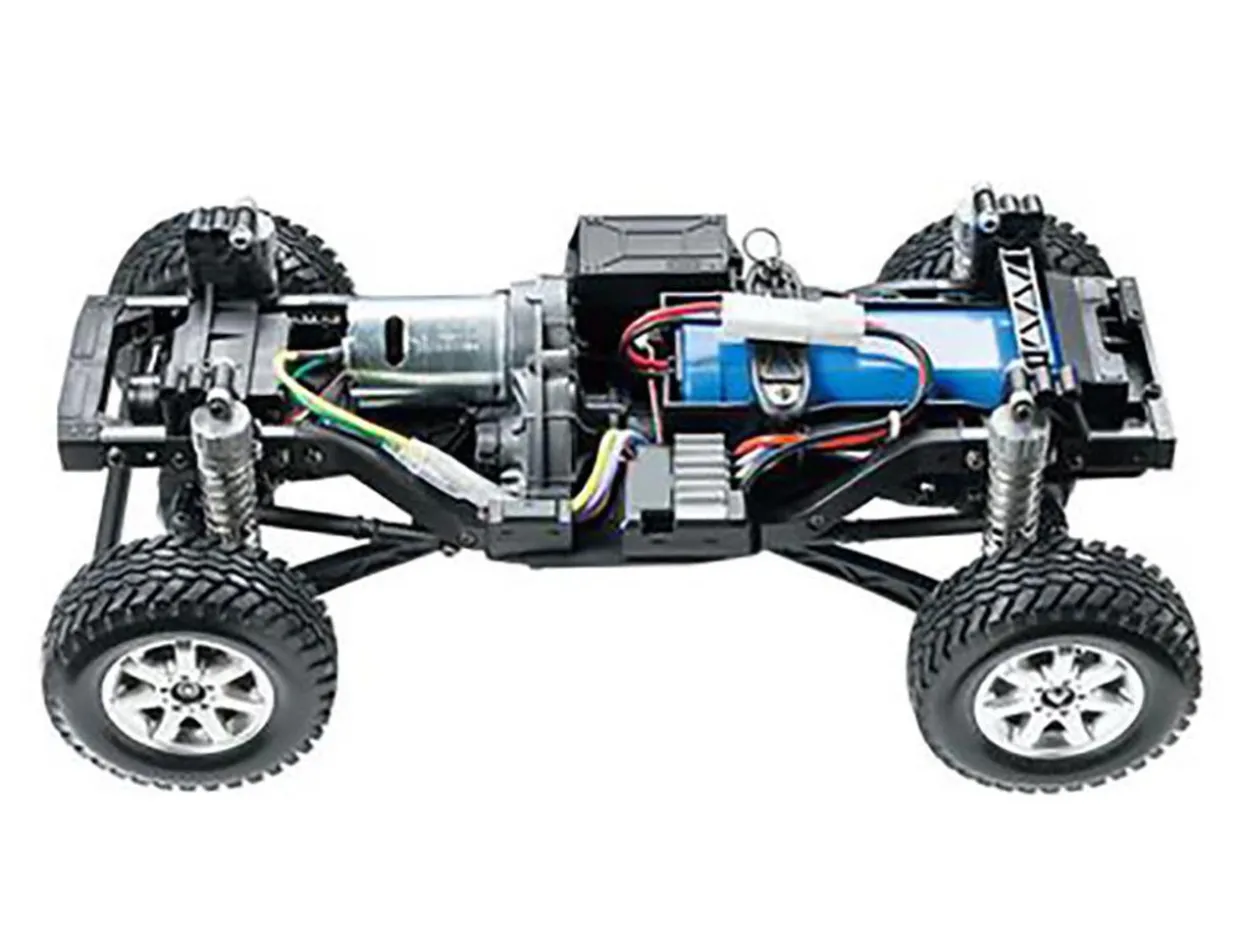

• Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.
• A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.
• Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!
• 4-link rigid suspension front and rear, with CVA oil dampers.
• Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.

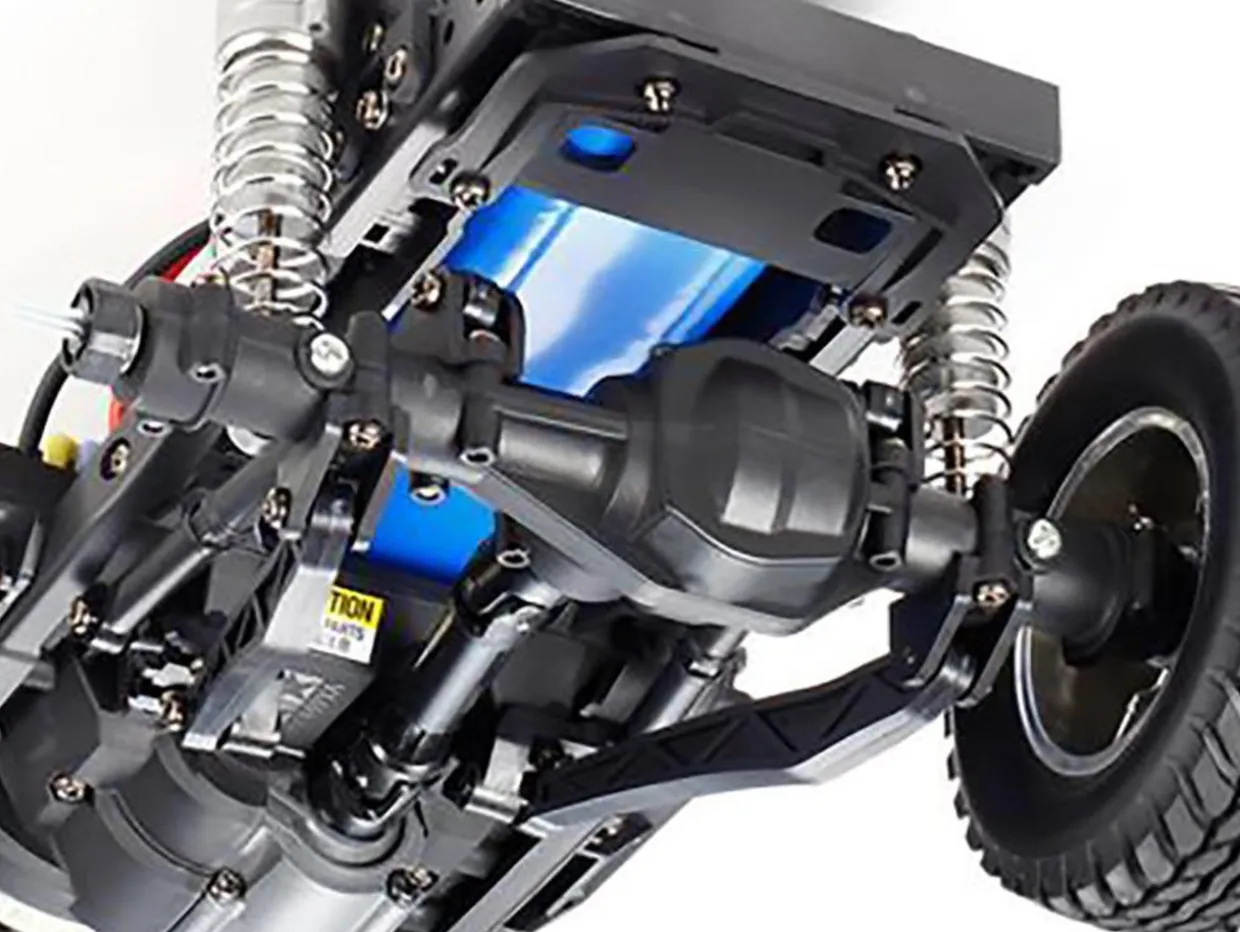

• Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.

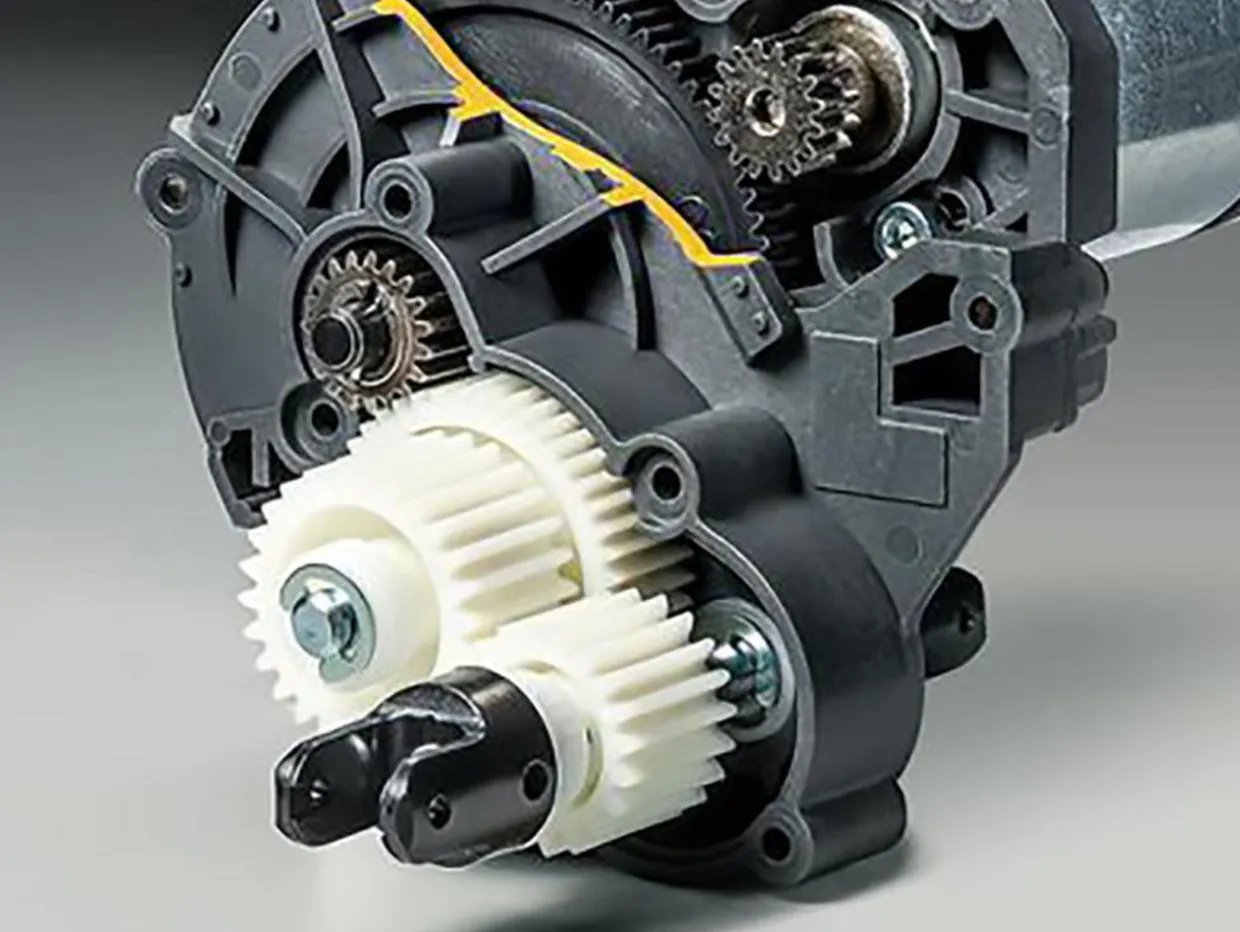

• Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.

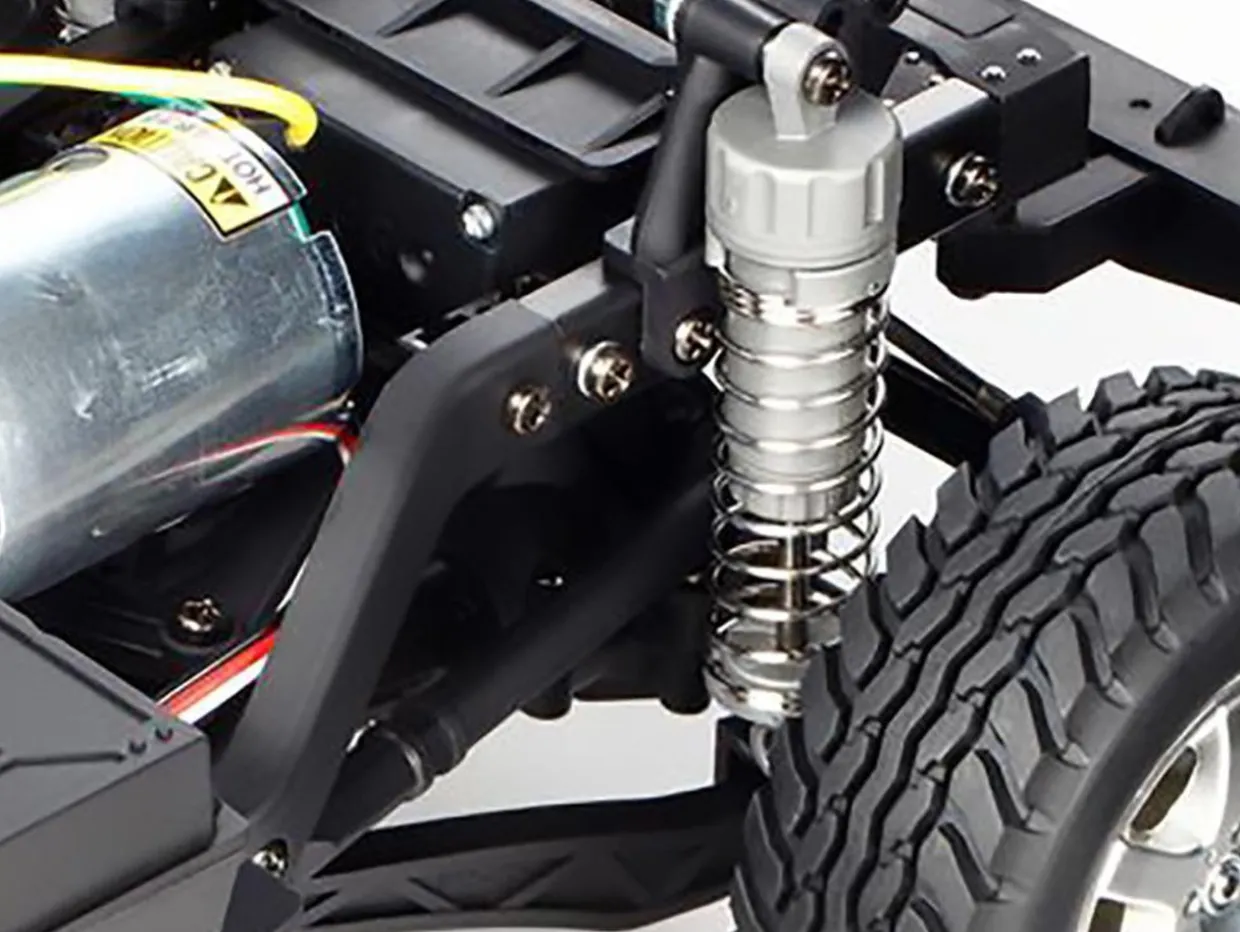

• 4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.
• Includes: Electronic speed control.
• Required Items: 2-Channel radio, steering servo, 7.2-7.4v battery pack with compatible charger, and Tamiya PS paint.

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

ELECTRIC KITS REQUIRE:

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: Tamiya PS spray paints

Manufacturer: Tamiya
Model: 58705 Mercedes Benz G500 CC-02 Model Kit
Scale: 1/10
